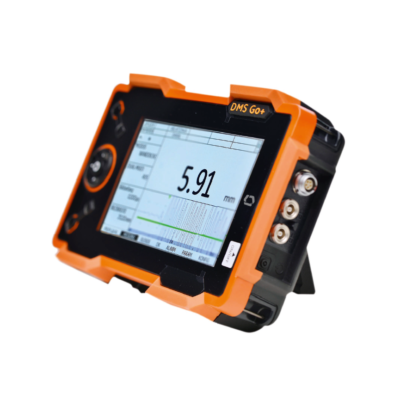

DMS GO+ Series A-Scan Thickness Gauge

The new DMS Go+ Series of A-scan thickness gauges provides accurate, reliable and comprehensive thickness inspection data in a wide range of applications and environments.

All three models feature intuitive, easy-to-use arrow-keypad control and carry out from simple A-scan verification to B-scan and full Data Recording. The three thickness gauges are easy to upgrade with additional features and capabilities in order to form a powerful and flexible NDT inspection tool that meets your corrosion thickness application needs. There are three models to choose from – DMS Go+ Basic, DMS Go+ and DMS Go+ Advanced.

The DMS Go+ Series uses the same operating platform and hardware as the state-of-the-art USM Go+ portable flaw detector. This offers the ability to have an A-scan thickness gauge and full-fledged flaw detector in one powerful & flexible instrument.



Download Brochure

Categories: ,
  • Flexible Performance
  • Ergonomic design for easy operation
  • High performance thickness measurement
  • High capacity data recorder and compatibility with powerful data management systems
  • Intuitive arrow-keypad for positive digital control of parameters
  • A “Flip” function allows use by both left-handed and right-handed operators
  • Portrait or landscape views to match user preference
  • A large, 800×480 pixel, display screen, ergonomically sized to reduce eyestrain, which can be adjusted to provide optimum visibility in various ambient light conditions
  • Small size, lightweight (870g, 1.9lb), robust construction to IP67 for operation in harsh environments
  • Automatic gain control for excellent repeatability and corrosion monitoring



  • Cutting-Edge Technology
  • Built-in temperature compensation for accurate measurement up to 540°C (1000°F)*
  • Save and load parameter sets for easy recall and repeatability from inspection to inspection
  • On-board data recorder, with capacity of thousands of thickness readings, with storage of A-scan, B-scan and MicroGrid attachments*. The DMS Go+ and DMS Go+ Advanced models offer expanded data recording capability with additional boiler, custom grid, custom linear, custom point, and 3D, & 4D file structures via UltraMATE
  • Data transfer is by SD card or via USB port to PC. Data can be transferred in various file formats to allow easy integration with user data management systems
  • Export data in multiple file formats (e.g. CSV, PDF, DAT, XML, JPG screen capture)
  • Compatible with many of the popular mechanical integrity risk-based inspection data management analysis programs. SDK (software development kit) available to link to other software programs
