Seifert ISOVOLT X-Ray Tubes

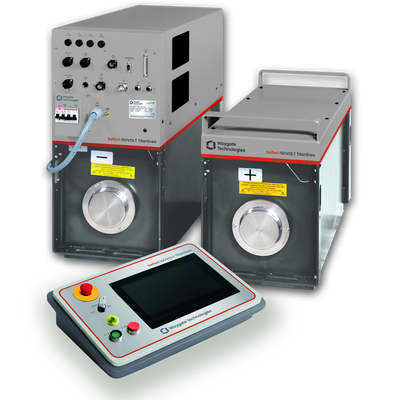

Waygate Technologies ISOVOLT Titan E stationary 160 or 225 kV X-ray machine is based on the field-proven ISOVOLT Titan series, but offers significant improvements in ease of operation, controllability and on-board logic to allow greater operational productivity and reliability. The machine finds increasing application in meeting the requirements of system integrators for automated X-ray and long-term stable CT solutions, as well as being used as a stand-alone X-ray machine for conventional and digital X-ray radiography.


  • Tube protection – Automatic warm-up procedures and extended warm-up modes to safeguard tube performance.
  • Smart and intuitive user interaction – Several integration possibilities facilitating higher productivity.
  • Excellent dose reproducibility – Extremely stable high voltage section for optimized exposures.
  • Convenient integration – Integrates into several external platforms, such as automated testing machines, leveraging different interface features for device control, monitoring and visualization.
  • Excellent endurance and performance – For permanent or intermittent operation.
  • Reduced total cost of ownership – Less intensive maintenance combined with easier serviceability.


  • Single or three phase mains available.
  • High stability.
  • High accuracy.
  • Precise reproducibility.
  • Short ramp-up time (< 1.5 sec).
  • Extremely low ripple.
  • High dose rate output.
  • Intelligent X-ray tube warm-up.
  • Large LCD display.
  • Clear text messages in up to 16 languages.
  • Speed sensitive rotary control (kV, mA).
  • Rugged and reliable design.
  • Proven reliability.
  • Full on-site maintainability.
  • Local and remote diagnostics.
  • Systems Integration via standard RS 232C optional: RS 422 or RS 485 / Profibus (EN 50170) / Ethernet.
  • Remote operation up to 100 m (300 ft.).
  • Broad range of tubes,accessories and kits available.

Built for a wide range of applications in different environmental conditions, Titan E generator solutions are for all NDT needs, life science applications and also measurement and calibration tasks.

Titan E is available in 3-phase, 400 V or single-phase, 230 V input power rating. As a result easy integration into different power environments without regional limitations is possible.
