Sonyks

SonyksTM is a major leap in guided wave equipment. Eddyfi Technologies has redefined guided wave ultrasonic testing with the Sonyks setting new benchmarks for data quality, versatility, ease of use, and deployment. From Teletest, who pioneered Guided Wave Testing (GWT) commercially, the state-of-the-art system comes with a large high-quality touchscreen, ultra-fast electronics for rapid data acquisition, and on-the-spot data analysis capabilities for accurate reporting. Sonyks has reinvented guided waves, making the technology simpler and more accessible for the industry.

Categories: , ,

Simplified & streamlined workflow for top efficiency
Thanks to a project-based inspection setup, time spent at a location can be reduced by 33%. This combined with a new multilocation reporting feature generates significant time savings.

Comprehensive data at your fingertips
Sonyks is the first instrument with an onboard screen for GWT interpretation. It uses a combination of broadband and Full Matrix Capture (FMC) data collection, meaning that all data ever needed is collected once to make analysis possible anywhere. Move on to the next location knowing you have all the necessary data with increased speed and peace of mind.

Best instrument and tooling provide the best data
With an unmatched Signal-to-Noise Ratio (SNR), Sonyks inspects longer distances and locates even smaller defects. This improved SNR can dramatically simplify analysis and increase the overall efficiency of the inspection by 50%.

Ramp up your utilization rate
Sonyks is an incredibly versatile system that allows operators to address more applications thanks to short-range and medium-range capabilities in addition to long-range ultrasonic testing. For example, use the new 128 kHz magnetostrictive collar to inspect flanged pipes efficiently.

Sound evolution for GWT experts
Reuse transducer rings you already own and make the most of your past investment in GWT. Couple your existing collars to a new-generation instrument with best-in-class electronics and give a second life to your inspection programs.

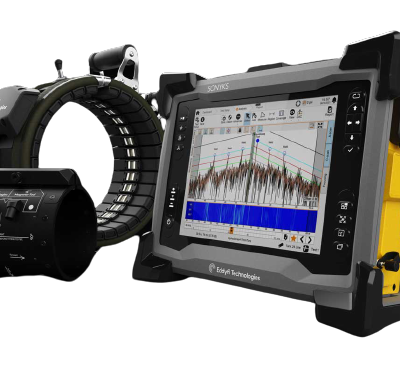

Sonyks System

  • First Guided Wave instrument with onboard screen for interpretation
  • Revolutionary data collection procedure
  • Onboard pump and full diagnostics
  • Compatible with most commercial Piezo GWT equipment
  • Lightest tool on the market
  • Rapid deployment Magneto-tool
  • Single connection Piezo-tooling

Sonyks Instrument

  • Field proven Eddyfi platform
  • Premium-quality 26.4 cm (10.4 in) LED touchscreen display
  • Quick access hard button
  • Hot-swappable batteries
  • Integrated pump for ring inflation
  • Onboard testing and diagnostics for faster setup times

Piezo Collars

  • Unique ring spacing gives broadest frequency range of Inspection on the market – High definition not just included but standard
  • Single connection between instrument and the tool
  • Extremely flexible for easy packing and shipping
  • Lightest tool on the market

Magneto Collars

  • Revolutionary segmented Magneto-tooling for small pipes ranging from 1.5, 2, 3 and 4 inch
  • Step change improvement in signal-to-noise ratio
  • Tailored frequency options for high attenuation or high resolution applications
  • Greater portability, ideal for flange-to-flange pipe sections
  • Low profile clearance
  • Quick connector with torque setting to ensure correct pressure
